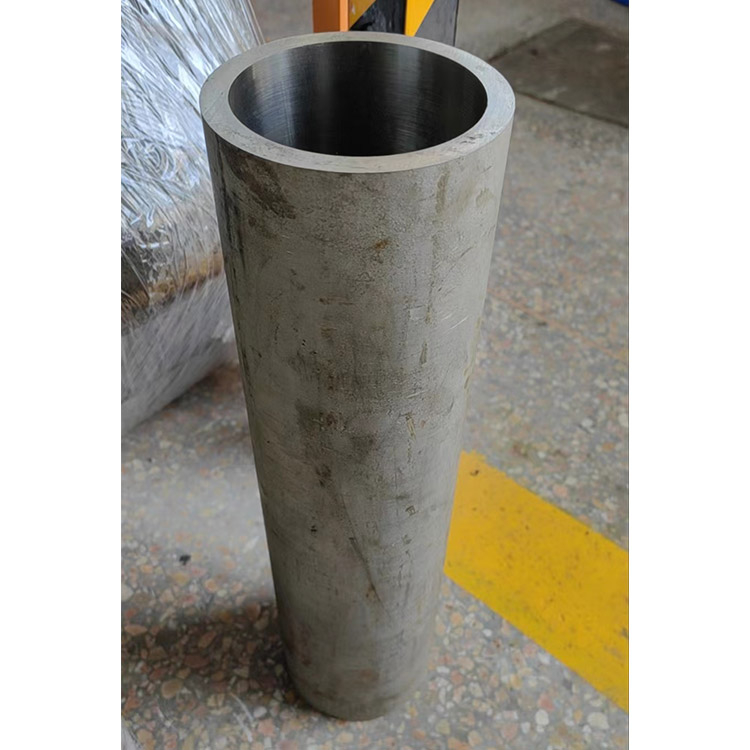

Stainless Steel Honing Cylinder

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The main uses of the products: hydraulic and pneumatic cylinders, hydraulic pipelines, spinning, textile and printing machinery tubes, automobile shock absorber tubes, shaft sleeve tubes, piston rods and steel tubes for precision machinery.According to the requirements of customers, we can also provide: cut-to-length tubes, honed tubes and special heat-treated tubes, etc.The quality has all reached national standards, and the products are widely used in automobiles, electric power, petrochemicals, ships, aerospace, bearings, pneumatic components, oil cylinders, boiler equipment, medical equipment, fitness equipment, tractors, motorcycles, steel connection sets, cylinder pipes, machinery manufacturing and other industries; established long-term and stable cooperative relations with well-known auto parts manufacturers at home and abroad.

The current production specifications are: inner diameter 12mm-600mm, wall thickness 2mm-60mm.The technical conditions are: inner hole precision H8, inner hole roughness Ra≤0.63um, straightness ≤0.3mm/m.The steel grades are 20#-45#, 16Mn, 27SiMn/304 stainless steel and some low alloy steel, standard GB8713-88.The specifications are 12-600*2-60MM, and various types of cylinder pipes with a length of 2-12M, with an annual production and sales capacity of 30,000 tons.Advanced equipment, optimized production process, perfect detection means.


Hydraulic, pneumatic cylinder specification size, precision Hydraulic and pnoumate linear actuator sandars



Processing methods

Working method

Inner diameter of cylinder mm

Cylinder ID

length m

Length

Straightness mm/m

Straightness

Inner Diameter Accuracy  ID Tolerance

Wall thickness difference

WT Tolerance

Um Roughness

cold drawn

Cold Drawn

40-320

≤12m

0.2-0.5


±5%

0.8-1.6

cold rolling

Cold Rolled

30-100

≥12m

0.2-0.5


±5%

0.8-1.2

Cold drawing - honing

CD-Honed

40-500

8m

0.2-0.3

H8-H9

±5%

0.2-0.8

cold call-rolling

CD-SBB

40-400

7m

0.2-0.3

H8-H9

±5%

≤0.4

Deep hole boring - honing

Rolled-Honed

320-400

8m

0.2-0.3

H8-H9

±8%

≤0.8

Deep hole boring - rolling

Rolled-SBB

320-400

7m

0.2-0.3

H8-H9

±8%

≤0.4

Mechanical propertiesmechanical property




supplycondition

steel type

Steel grade

cold-drawn

(hard)(BK)

Cold drawing + stress relief annealing

cold drawn and stress-relieved(BK+S)

hardness

Hardness

HB

tensile strength

TS

g  bN/mm²

Elongation

elongation

35%

tensile strength

TS

bN/mm2

Yield Strength

YS

g sN/mm2

Elongation

elongation

35%

20#

≥550

≥8

≥520

≥470

≥12


45#

≥650

≥5

≥600

≥520

≥12


16Mn

≥640

≥5

≥600

≥520

≥15


25Mn

≥640

≥5

≥600

≥510

≥15


27SiMn

≥840

≥5

≥800

≥720

≥10
